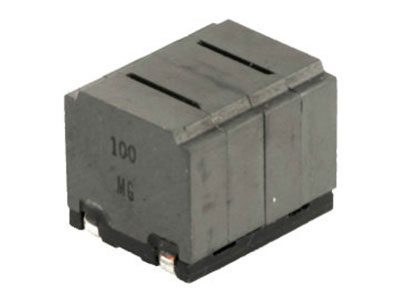

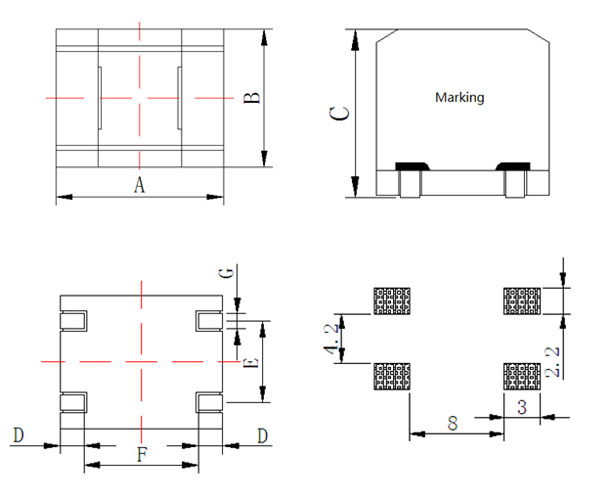

1.Dimensions(mm)



Features
a、Compact size using flat wire
b、Low radiation noise by magnetically
shielded construction
c、Small,low resistance and High current

N0.	A:±0.3	B:±0.3	C:Max	D:Ref	E:Ref	F:Ref	G:Ref
Spec.	12.8	10.5	10.2	1.9	6.4	9.0	1.2

2. Electrical characteristics

Part Number	Code	L(uH)±20%	DCR(m Ω)Max	Isat (A)	Irms (A)
BDEP1010B-100M	100	10	18	7.1	4.2
BDEP1010B-120M	120	12	20	6.0	4.0
BDEP1010B-150M	150	15	23	5.3	3.8
BDEP1010B-220M	220	22	38	4.3	3.0

a. Measurement Frequency for Inductance: 100KHz/0.3V
b. DC saturation allowable current: Inductance drift is within-25% at the superposition.
c. Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
