Features
a、Compact size using flat wire
b、Low radiation noise by magnetically
shielded construction
c、Small,low resistance and High current

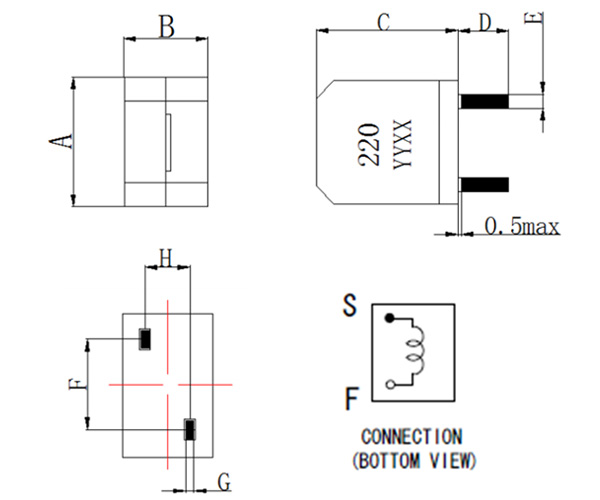

N0.	A:±0.3	B:±0.3	C:Max	D:±0.3	E:±0.2	F:±0.3	G:±0.3	H:±0.3
Spec.	14.0	9.6	16.0	5.0	1.8	9.2	0.45	5.3

2. Electrical characteristics

Part Number	Code	L(uH)±20%	DCR(mΩ)Max	Isat (A)	Irms (A)
BDEP1415B-100M	100	10	8.3	8.3	7.3
BDEP1415B-150M	150	15	8.3	7.5	7.3
BDEP1415B-220M	220	22	8.3	7.0	7.3
BDEP1415B-330M	330	33	8.3	6.1	7.3

a. Measurement Frequency for Inductance: 100KHz/0.3V
b. DC saturation allowable current: Inductance drop is within-25% at the superposition.
c. Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
