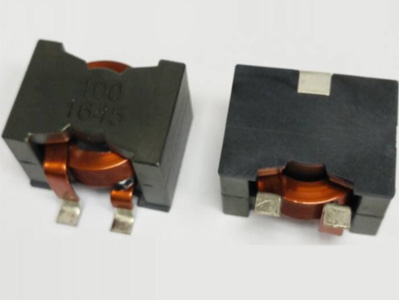

Features
a、Compact size using flat wire
b、core material Ferrite
c、low resistance and High current

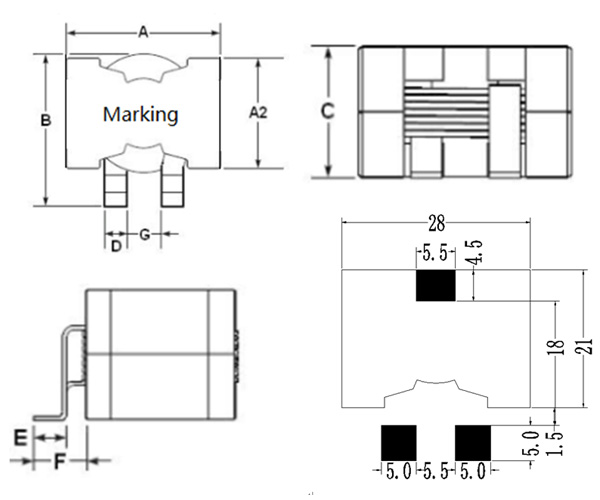

N0.	A1:max	A2:max	B:max	C:±0.5	D:±0.2	E:±0.3	F:ref	G:±0.5
Spec.	27.9	20.0	27.0	17.3	4.0	3.8	5.5	6.1

2. Electrical characteristics

Part Number	Code	L(uH)±20%	DCR(m Ω)Max	Isat (A)	Irms (A)
BSER2817H-4R7M	4R7	4.7	3.0	62.4	28
BSER2817H-6R8M	6R8	6.8	3.0	45.9	28
BSER2817H-100M	100	10.0	3.0	32.1	28
BSER2817H-150M	150	15.0	3.0	21.9	28
BSER2817H-220M	220	22.0	3.0	15.0	28
BSER2817H-330M	330	33.0	3.0	9.6	28

a. Measurement Frequency for Inductance: 100KHz/0.3V
b. DC saturation allowable current: Inductance drop is within-30% at the superposition.
c. Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
